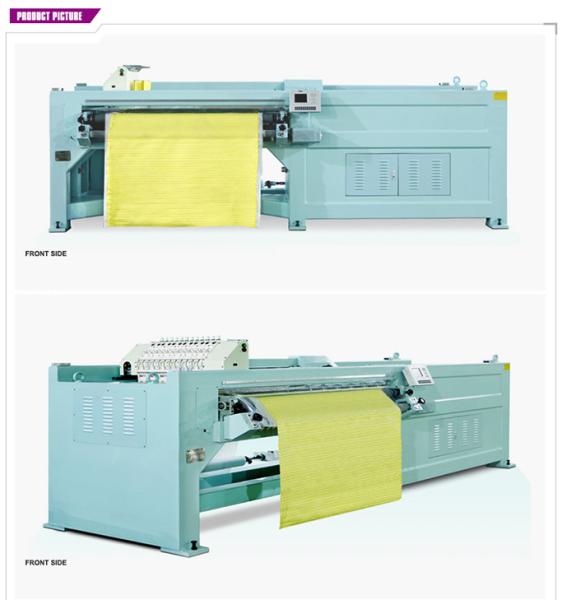

Single Roll Horizontal Quilting Embroidery Machine Easy Reading Embroidery Format

YBD18 Single Roll Horizontal Quilting Embroidery Machine , quilt straight line for jacket , 800 ~ 1000 R.P.M

Function:

Quilt and Embroider straight line alongside the width of fabric and leather. Especially for the horizontal and straight quilting & embroidery designs on the jacket , duvet , down filled garments etc.

Features:

1. The machine adopted large rotary hook with lower noise
2. make neat stitches less miss stitches, loose stitches, coarse stitches, etc
3. Quilt & embroidery completed at the same time.
4. The integral steel structure machine frame , high intensity and stability.
5. Infrared protection device in all direction
6. safty and reliable machine operation.
7. Function of independent patterns interval quilting, adopting Tensile Motor to keep the fabric smooth at the inlet and outlet fabrics.
8. Main axis and XY axis are all adopted the Servo Motor.
9. Function of under and upper thread auto detector, red light displayed on the thread broken position.
10. Function of edit patterns on the equipment directly, and convenient to read the embroidery format.
11. Stitches between 1mm-12.7mm adjustable, Sewing Speed: 800-1000/R.P.M.
12. Safe operation display of quilting and embroidery; Automatic needle run-up and orientation brake system.
13. Function of pattern patch-up, can efficiently solve the distorted patterns when quilting the thick materials.
14. Prepared plenty patterns for your choice.

Parameters:

Working Principle

At the same time, three motors are used to drive the movement of the XYZ axis. The X-axis controls the movement of the amine frame to the left and right, and the Y-axis controls the movement of the roller. The Z-axis is the main axis.

At the same time, the up-and-down movement of the needle and the back and forth movement of the bottom bobbin are controlled to Sew product.

Horizontal Samples:
